Air Movement
Comfort
Air movement is crucial factor in thermal comfort. If air is stagnant in artificially heated areas it can contribute to musty odour problems and feelings of stuffiness. Whereas small movements of cold air can be considered draughty and unpleasant.
But in a warm or humid environment air movement can be preferable as it helps with heat loss without any change in the air temperature.
Odours
In a commercial kitchen environment with high temperatures and cooking odours, an intermittent or constant air movement can help with the comfort of staff.
Fumes
Any dangerous fumes and vapours must also be removed from the cooking area and immediately discharged. In modern restaurant design it is common for the kitchen to be open plan with the seating area so it is crucial that air movement keeps heat, noise and cooking odours within the cooking area and away from customers. The diners' thermal comfort adds to the overall enjoyment of the dining experience.
Service Spines
Vapour

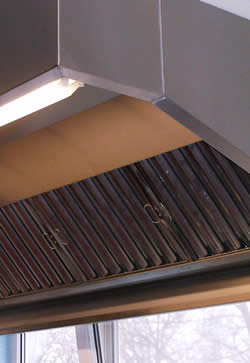

Heat / Fume Extraction and Vapour Extraction in a commercial kitchen need to combined into one single unit. This presents a challenge for the system as it needs to separate the heat and fumes from the water vapour.
But in a warm or humid environment air movement can be preferable as it helps with heat loss without any change in the air temperature.
Filter
Centrifugal force is used to transfer the water vapours to a baffle filter, the water is then channelled and removed every few days by removing a grease cover.
Discharge
Heat / Fume extraction is then performed and the air is discharged through the ductwork either externally or through a heat recovery / heat exchanger system to recycle the heat to other parts of the building.

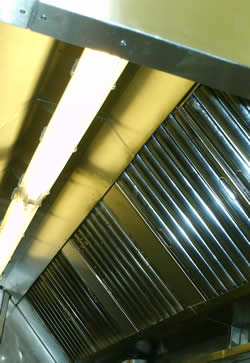

Kitchen Canopy
Extraction
We always recommend a kitchen canopy is positioned directly above the cooking equipment to provide immediate extraction of all fumes and vapours protecting kitchen staff.
Our stainless steel extraction kitchen canopies can be manufactured to your exact specification, in line with HVCA DW/172 specification..
Greases
Extraction canopies are used to remove all greases and particles in the air. They are then taken through the ductwork and discharged in a safe location.
Fresh
Condense canopies are mainly installed over equipment that produces steam, such as combination ovens, Bain Marie's, pass through dishwashers and sterilising sinks. The basic principle is the same as an extraction canopy but with baffle plates and a drain off point for the condensation.
The kitchen canopy will also provide replacement air flow to bring fresh air into the kitchen.
Grease Filters
Extraction
We always recommend a kitchen canopy is positioned directly above the cooking equipment to provide immediate extraction of all fumes and vapours protecting kitchen staff.
Our stainless steel extraction kitchen canopies can be manufactured to your exact specification, in line with HVCA DW/172 specification..
Greases
Extraction canopies are used to remove all greases and particles in the air. They are then taken through the ductwork and discharged in a safe location.
Fresh
Condense canopies are mainly installed over equipment that produces steam, such as combination ovens, Bain Marie's, pass through dishwashers and sterilising sinks. The basic principle is the same as an extraction canopy but with baffle plates and a drain off point for the condensation.
The kitchen canopy will also provide replacement air flow to bring fresh air into the kitchen.
